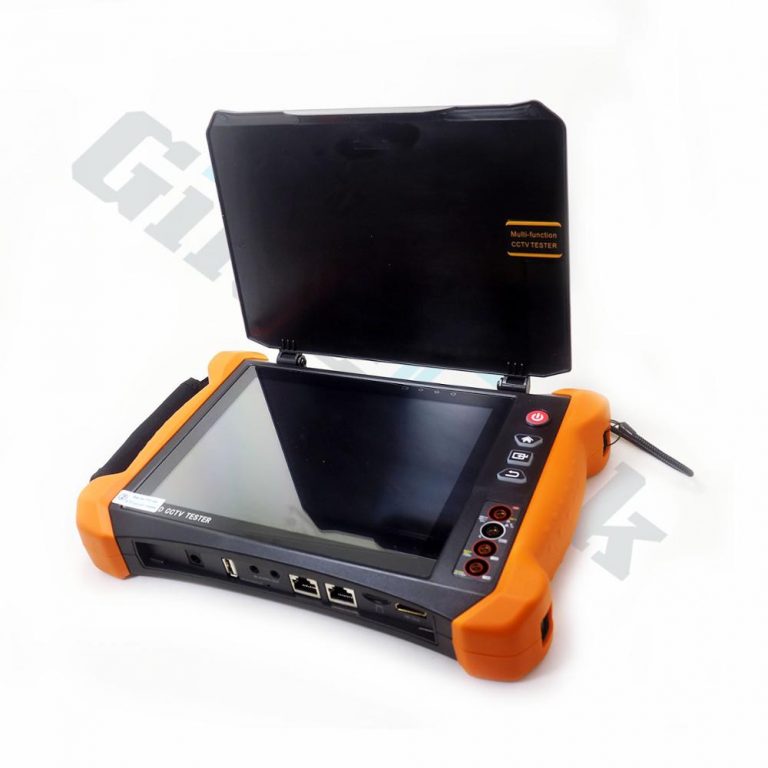

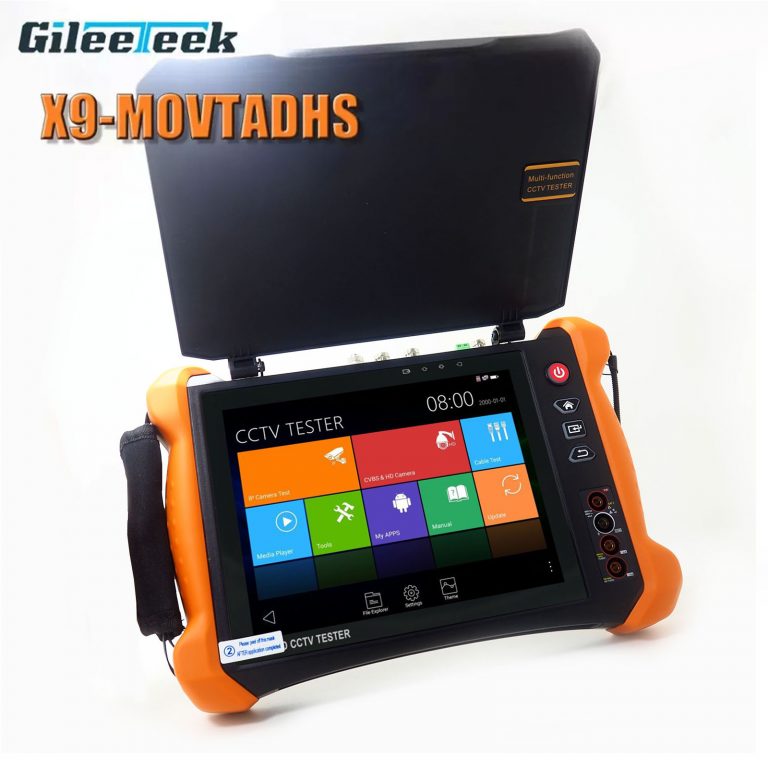

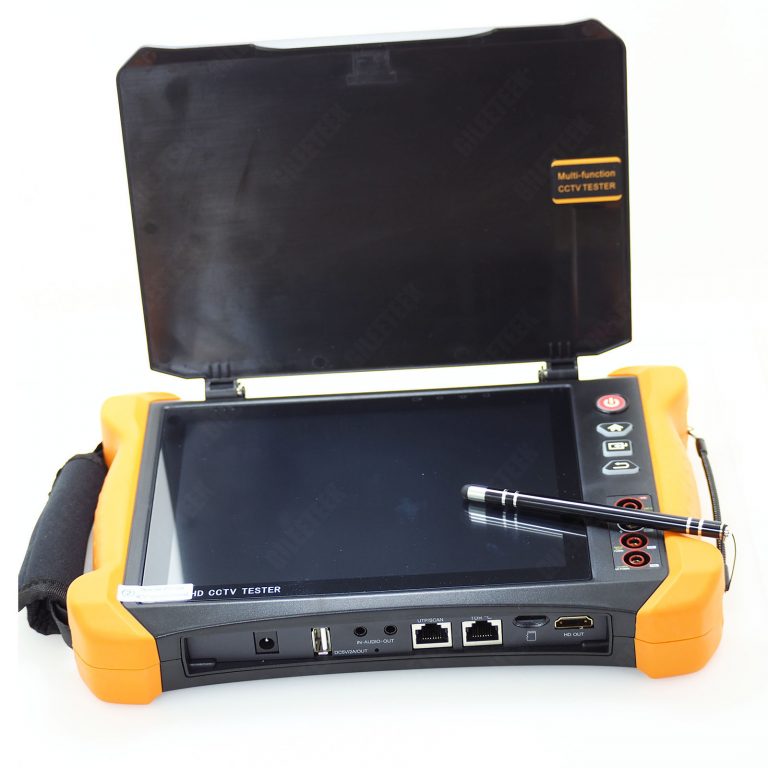

Monitor H.265 4K 8MP camera Full-featured professional test tool

eight inch 2K retina show with Anti-sunlight Cowl HD CCTV tester

◆ eight inch Retina contact display, 2048*1536 decision
◆ 8MP TVI, 8MP CVI, 5MP AHD and SDI/EX-SDI test
◆ H.265/H.264, 4K video show by way of mainstream
◆ Chrome browser, test and set Axis camera
◆ Twin window test, IP &Analog camera test
◆ In-built WIFI, create WIFI hotspot
◆ HDMI 1080P enter and 4K output
◆ HD Coaxial video sign high quality and degree meter test
◆ RJ45 cable TDR test, UTP cable high quality test
◆ DC12V 3A, DC48V PoE energy output
◆ four channels Speedy ONVIF simultaneous show, auto view video, and create testing report
◆ Backlight buttons, simpler to function at nighttime

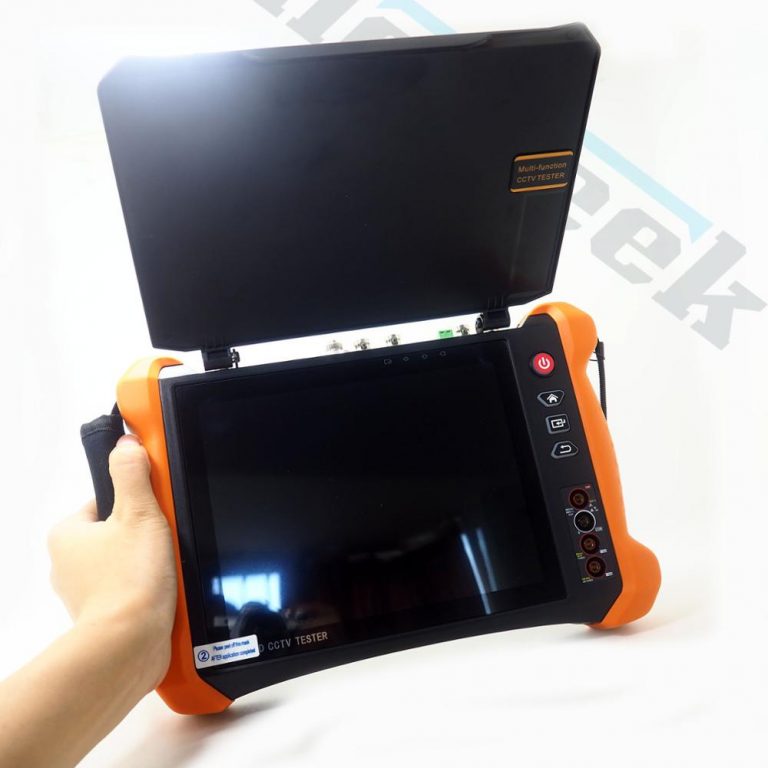

◆ Anti-sunlight board,assist shade the eyes of engineers from the glare of daylight.
◆ TesterPlay, tester, android model cell phone and PC show on the identical time

Product Overview

The eight inch contact display IP camera tester is designed for upkeep and set up of IP analog, HD coaxial cameras in addition to different safety tools. The 2048X1536 decision permits it to show community HD cameras and analog cameras in excessive decision. The unit helps many ONVIF PTZ and analog PTZ management. Extra, it with different capabilities TDR cable test, Digital multi-meter, UTP cable test and cable scan and many others. CCTV installers usually want to hold quite a lot of testing instruments to finish their work. If take the multi function camera tester, making working situations safer and rising productiveness.

Software

●CCTV system set up and upkeep
●Community cabling challenge set up and upkeep
●Dome camera, IP TVI CVI AHD SDI 4K H.265 camera testing
●Video transmission channel testing
●PTZ controller

Major Perform:

Camera test:

● eight inch retina contact display, 2048*1536 resolutions
● H.265 & H .264 IP, 4K video show by way of mainstream
● 8MP TVI test,3840 x 2160P 15 fps,4xzoom ,video report &playback ,coaxial PTZ management & name OSD menu
● 5MP AHD test, 2560x1944P12.5F/ 20fps, 4xzoom, video report & playback, coaxial PTZ & name OSD menu
● 8MP CVI test, 3840 x 2160P 12.5/15fps, 4xzoom, video report& playback, coaxial PTZ & name OSD menu
● HD SDI/EX-SDI camera test, help 1080P 25/30 FPS *
● four channel ONVIF video simultaneous show,four channel show max help 1080P ,single channel show max help 4K
● Speedy ONVIF, Auto log in and show picture, create testing report
● Chrome browser, test and set Axis camera
● AXIS, Hikvision camera test, enter ONVIF app, enter username and password to test
● CVBS camera test and PTZ management
● IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera), DH test tool (Dahua camera)
● Video degree meter, peak video sign degree, SYNC sign degree, Coloration bar chroma degree measurement.
● DC12V/3A energy output, camera may be powered from DC 12Votage.
● 48V PoE energy output energy.
● Speedy video, simply by one key to detect all community cameras and auto show.
● In-built Wi-Fi, show picture from the wi-fi camera, create WIFI hotspot.
● CVBS loop test, the tester ship and obtain shade bar generator sign, to verify BNC cable.
● Enhanced Coloration bar generator, PAL/NTSC multi-system shade bar video generator

Cable test:
● Enchancment cable tester, UTP cable, phone cable and many others order and connectivity test, can save testing report, if particular quantity, want custom-made.
● RJ45 cable TDR test, test cable pair standing, size, attenuation, reflectivity, impedance, skew and many others.
● Cable tracer, search BNC cable, community cable and phone cable from the mess cables.

Different capabilities:
● Community tool: Ping, IP scan, Port Flash, DHCP server, Hint Route.
● POE & energy info, DC12V& PoE energy and voltage output /enter measurement.
● Tester Play: Tester, android model cell phone and PC show on the identical time.
● Shortcut button, drop-down menu, can choose Poe energy, IP setting, CVBS, LAN information, HDMI IN and many others.
● HDM enter,720×480p /720×576p /1280×720p /1920×1080p /1024×768p/1280×1024p /1280×900p /1440×900p show,report and snapshot *.
● Site visitors monitoring, show community port or WIFI connection real-time add and obtain speeds and different community parameters.
● Self -update software program, you may set up apps with android model.
● Media participant, 4K video information and MKV/MP4 media information play.
● Fast workplace, fast workplace app (help excel, phrase, ppt format) doc. editable.
● 8GB SD card together with.
● Show its real decision of the IP camera photos.
● Audio in, help report and save the audio/LED lamp, calculators, music gamers and different software instruments.
● 7.four V /7000mAh Lithium Ion Polymer Battery, after 6~7 hours charging , working time lasts 16 hours
