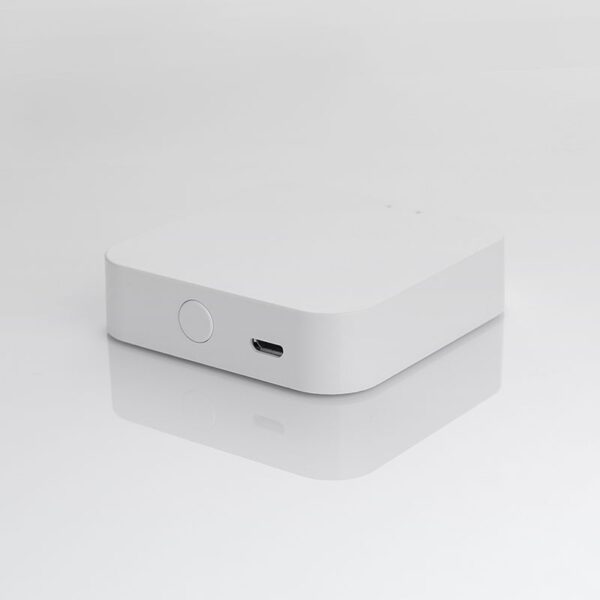

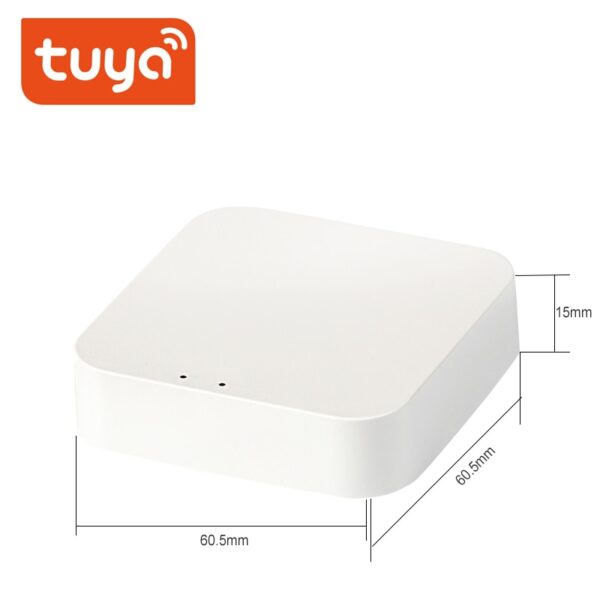

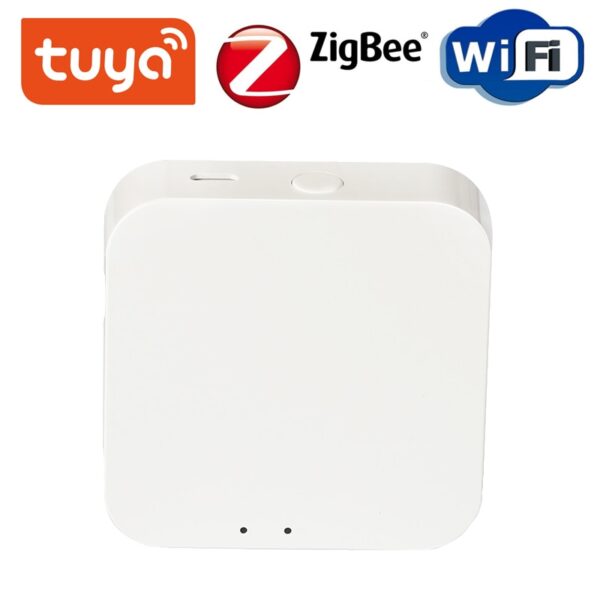

Tuya ZigBee Smart Gateway Wireless Hub Smart Home Bridge

Description

Tuya ZigBee Smart Gateway Wireless Hub Smart Home Bridge Gateway Support Smartlife TUYA Work with Alexa Google Home ZigBee Hub.

TUYA Zigbee hub that connects to a wide range of Zigbee sensible merchandise and is the bridge and management heart for sensible properties. By connecting to the router, TYGWZ-01 permits communication with the cloud and cellular app, permitting customers to simply view and management numerous sensible units within the dwelling that use the Zigbee protocol.

Parameter:

– Chip: EFR32MG1B232

– Commonplace: IEEE 802.15.4

– Frequency: 2.4~2.485GHz

– Most output energy: 19dBm

– Dynamic output energy: >35dB

– Open line of sight transmission distance: >300m

– Frequency error: ±15ppm

– Theoretical transmission price: 250kbps

– Obtain sensitivity: typical -102dBm, PER<10%

– Whole variety of channels: 16 Channel quantity: 11~26

– Community topology: Helps star, tree, mesh community

– Antenna: default PCB onboard antenna Firmware improve: Support OTA

Electrical Specification

– Adapter: 110V~240V AC, 5V/1A DC

– Working voltage: 1.8V ~ 3.3V

– Working temperature: -10-55°C

– Working humidity: 10%-90%RH (non-condensing)

– Storage temperature: -20-60°C

– Storage humidity: 5%-90% RH (non-condensing)

• Model Title: LEING FST
• Mannequin Quantity: ZB-WG-2
• Compatibility: All Appropriate
• Internet weight: 50 g
• Standing indicator: Two LED indicators: Wi-Fi and ZigBe
• Operation button: One energy/reset button
• Energy provide: 5 V DC energy over the Micro USB port
• Working present: <1 A
• Adapter output: 5 V1A
• Working humidity: 10% to 90% RH (non-condensing)
• Port: One Micro USB port
• Wireless expertise: Wi-Fi: 802.11b/g/n ZigBee: 802.15.4
• Antenna sort: Constructed-in onboard antenna
