SKU: 4000501725199 Category:

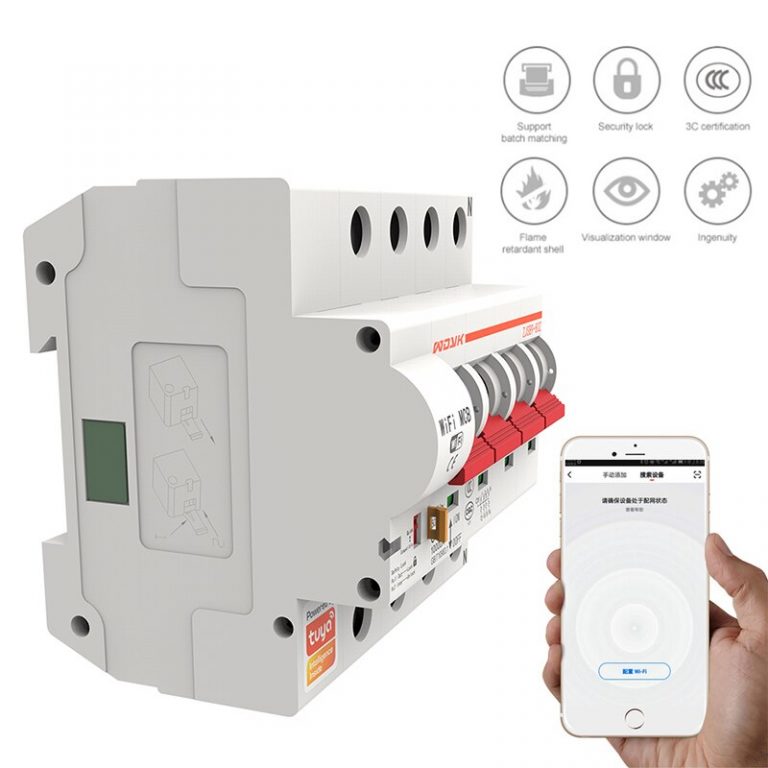

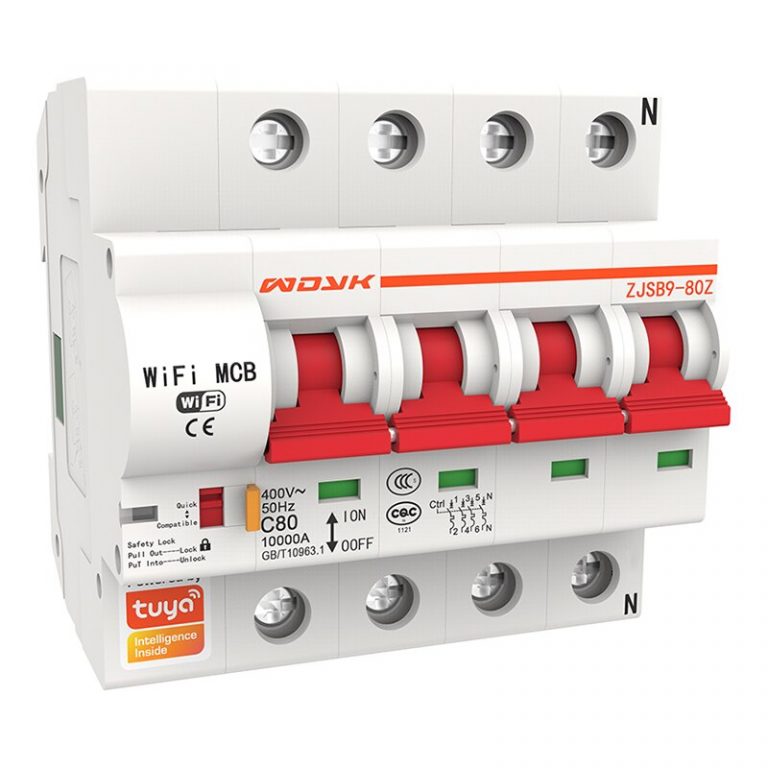

New 4P Circuit Breaker WIFI Switch Smart Life/tuya Control Overload Protection Smart Home Smart home Work With Google Home Alexa


  • 100% Model New and Excessive High quality!
  • APP:Smart Life/Tuya Smart

The ZJSB9 sequence of clever miniature circuit breakers replicate the newest design ideas and manufacturing strategies, that includes compact measurement, lengthy life, modularity, excessive breaking, and clever distant management. Relevant to AC 50Hz6Hz, rated voltage 220V/380V, rated present to 125A, for switching on, breaking, timing, delay and distributing electrical vitality and carrying rated present; and may overload and brief circuit in line and gear The safety of the road and {the electrical} gear within the case can be used because the rare start-up and overload and short-circuit safety of the motor. Extra importantly, it could possibly immediately management the circuit breaker closing and opening management on the distant management gadget, and could be shared with different customers via the prolonged operate, timing, delay and different setting capabilities to satisfy the wants of various customers.

  • Constructed-in anti-jamming chip. Improve the secure transmission and reception of WIFI alerts, stop litter interference.
  • Skilled EMC check, skilled EMC complete check to make sure the communication course of is protected and dependable.
  • Stand up to voltage of 6000V, it could possibly successfully enhance the service life of apparatus even beneath overvoltage situations.
  • EMC electromagnetic interference efficiency skilled electrical quick transient burst immunity check, surge check, electrostatic discharge check, and so forth., the product stays intact.
  • Excessive mechanical life, the product group remains to be near 120 instances per hour, and it nonetheless maintains good operation after 10,000 cycles.
  • Fast closing operate, enhance the opening and shutting efficiency to stop overheating and getting older, and delay the service life.
  • Ergonomic design work extra effectively.
  • Simulated thermal imaging design with decrease temperature.
  • Air blow arc precept, quicker arc extinguishing.
  • One cell phone can management all electrical home equipment with one APP
  • Island energy provide, tower gear, out of doors lighting, home energy provide, area engineering, mountain amenities, avenue lighting management.
  • Work with :  Alexa , google dwelling
  • Operate : swap on / swap off / timer schedual / sensible scene
  • Distant management : By smartphone utility from anyway (the smartphone should connect with the web in WiFi or 3g/4g)
  • WiFi : 2.Four Ghz
  • Protection : overload safety , short-circuit safety , isolating.


  • Meet the usual: GB/T 10963.1 IEC 60898-1
  • Rated voltage: AC 220V (1P, 2P) / AC 400V (3P, 4P)
  • Rated frequency: 50Hz
  • Variety of poles: 1P, 2P, 3P, 4P
  • Air pollution degree: Stage 2
  • Protection degree: IP20
  • Specified use temperature: -25 °C ~ +65 °C
  • Rack rated present: 80A, 125A
  • Rated present: 10A, 16A, 20A, 25A, 32A, 40A,
  • Instantaneous tripping type: C
  • Rated short-circuit breaking capability: 6kA
  • Rated impulse face up to voltage: 6kA
  • Mechanical life: greater than 10,000 instances
  • Electrical life: greater than 6000 instances
  • EMC efficiency: in step with GB/T 18449
  • Surge face up to: in accordance with GB/T 17626.5
  • Salt spray bearing: in step with GB/T 2423.17 48h
  • Mud bearing: in step with GB/T 4208 8h
  • Most wiring capability: 50mm2
  • Tightening torque: 4-5Nm

Bundle Included:

  • 1*Circuit Breaker
  • 1*Instruction guide


When shopping for this product, you’ll want to take note of whether or not the voltage matches.

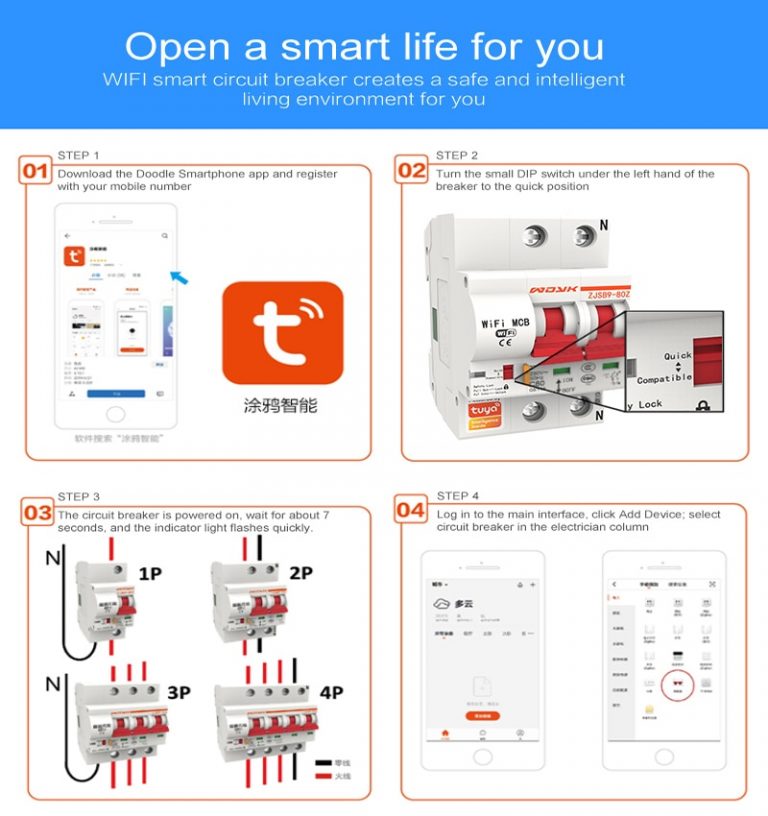

Test if the WIFI router is 5G or 2.4G. This product helps 2.4G (if it’s a dual-band router, please change to 2.4G)

Earlier than utilizing the product, you’ll want to learn the directions and use them accurately.

When putting in and putting in, please do it beneath the situation that the road is powered off to make sure security.

This product helps the higher line and the decrease line, and doesn’t assist the road on the decrease line. Please wire it accurately. The product adopts inner power-on mode. When working usually, please make sure that the voltage on the incoming terminal is secure and dependable. Earlier than the product is used, it must be paired for the primary time; after the primary pairing is accomplished, there is no such thing as a have to re-pair.

Throughout use, if a Wifi router change happens, the product must be re-paired.

Keep away from connecting inferior electrical home equipment to the product for management; with the intention to keep away from unintended burning of inferior merchandise, leading to property injury.

The product must be as shut as potential to the WIFI router throughout use, so far as potential to scale back the barrier of objects akin to partitions, to make sure sign stability.

If put in within the fringe of the WIFI sign protection, because the WIFI sign drifts and the sign fluctuates, the product will probably be uncontrolled repeatedly.

If the product is offline when the product is in use, please exit the app and wait a couple of minutes to restart the app and check out once more. At the moment, it must be evaluated whether or not the WIFI sign is secure, whether or not the WIFI router is way away from the product, and whether or not there’s robust electromagnetic area interference. After circumventing such conditions, the product will mechanically resume work with out re-pairing.

If the road out of the blue loses energy throughout regular use, the product will stay within the authentic closing state. When the decision is resumed afterwards, the product will open the safety motion after a number of seconds of judgment. This motion could be modified on the app in line with person necessities.

When the product is on the finish of its life, don’t discard it at will, and disassemble it correctly. The inside comprises silver treasured metals and the like.
