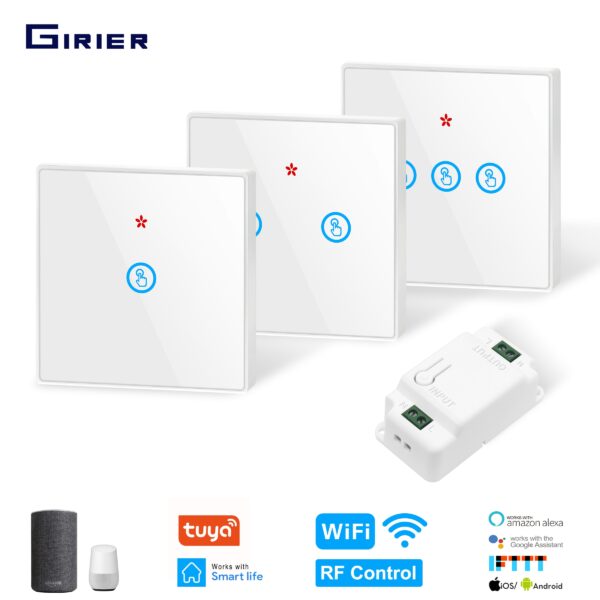

Smart DIY Wifi Light Switch 433MHz RF Touch Switch Glass Panel

Heat Suggestions

1. The RF transmitters have to be used with the Wifi Smart 433MHz RF swap. It can’t management lights immediately. 2. A bit of CR2032 is required for the RF transmitter, and the battery shouldn’t be included in bundle. 3. The double aspect adhesive tape is included in bundle. 4. Please kindly pay extra attentions to the choices earlier than putting order

Primary Function

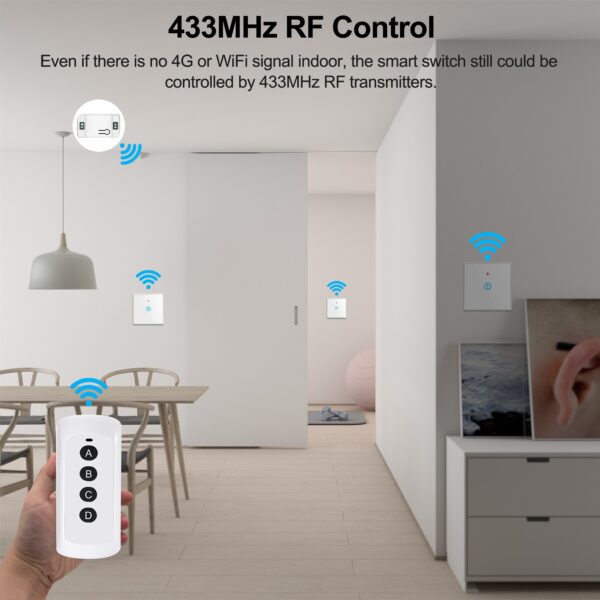

433MHz RF Management: 1 piece of Wifi Smart Switch can pair with as much as 15 methods RF transmitters. Stick the RF transmitters anyplace inside your home to regulate completely different lights with out wiring. Even when there isn’t a wifi sign, you possibly can nonetheless management lights indoors with RF transmitters. RF Management Distance: ≤30M（seen）; ≤15M (invisible) App Distant Management: Management lights at anyplace and anytime by free App “Tuya Smart or Smart Life”, so long as your smartphone has WIFI or 4G sign. NOT SUPPORT 5G. Voice Management: Completely suitable with Amazon Alexa and Google Home. Merely give a voice command to Alexa or Google Home to activate/off lights if you end up on go. Timing Setting: Setting schedules to show ON/OFF the good swap in response to your residing behavior. Any more, you’ll by no means wake within the morning by annoying alarm clock and return a darkish home within the night. And it could possibly show you how to cut back electrical invoice. Share Perform: Sharing gadgets together with your member of the family to get rid of the additional setup steps. Arrange time schedules as per your individual residing behavior to activate/off lights in addition to show you how to saving energy.

• Model Title: GIRIER
• State of Meeting: Prepared-to-Go
• Mannequin Quantity: JR-CT02
• Compatibility: All Appropriate
• Digital camera Outfitted: No
• Normal: Wifi Light Switch
• Sort: 433Mhz RF swap
• Voltage: AC 85-240V
• Perform: Smart Home Automation
• Load Energy: 1100W
• Standby Energy Mode: 0.3W
• Management Mode: App/RF/Voice/Manually
• App: TuyaSmart/Smart Life
• WiFi Normal: IEEE 802.11b/g/n 2.4Ghz
• Community Safety Mechanism: WPA-PSK/WPA2-PSK
• RF Frequency: 433Mhz
• RF seen Management Distance: 30M
• RF invisible Contral Distance: 15M
• Coding Approach: Studying Code
• Transtmitter Battery: CR2032
• Voice Management: Amazon Alexa, Google Home
• Certification: CE, FCC, RoHS

Parameters-SMART WIFI+RF Switch (Receiver)

Working voltage: AC85-240V RF frequency: 433MHz Standby energy mode: <0.3W Load energy: <1000W Wifi Normal: 802.11 b/g/n 2.4Ghz Coding approach: Studying code Modulation: ASK Working temperature: -10℃~+70℃ App: TuyaSmart/Smart Life Voice Management: Appropriate with Amazon Alexa/Google Home Dimension: 72*38*26mm

Parameters-433MHz RF Transmitter

Working voltage: DC 3.0V RF frequency: 433MHz Standby energy mode: <1 Transmitter Energy: <10mW Working approach: Wi-fi management Coding Approach: EV1527 studying code Modulation: ASK Working Temperature: -10℃~+70℃ Seen management distance: ≤30M Invisible management distance: ≤15M Battery mode: CR2032 Dimension: 86*86*15mm
